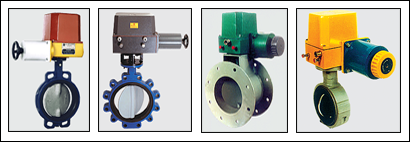

Technical Specifications :
| Actuator Data | Actuator Models | ||||||
| QT-3 | QT-5 | QT-10 | QT-20 | QT-30 | QT-40 | QT-50 | |
| Rated Output Torque Kgm | 3 | 5 | 10 | 20 | 30 | 40 | 50 |
| Operating Speed Sec /90° | 17 | 17 | 20 | 20 | 26 | 26 | 26 |
| Switching Frequency Operations / Hour a) Short Time b) Normal |
1200 600 |
||||||
| Weight Kg. | 14 | 15 | 27 | 28 | 38 | 40 | 42 |
| Degree of Protection | IP65/IP67 | ||||||
| Area of Operation | Safe | ||||||
| Motor Data | |||||||
| Type | Non-Blocking A. C. Motor | ||||||
| Supply : Standard Optional |
220V AC 50Hz Single Phase 110 V AC 50Hz Single Phase |
||||||
| Output wattes | 90 | 125 | 175 | 250 | 290 | 300 | 320 |
| Nominal Current Amp | 0.5 | 0.55 | 0.9 | 1.2 | 1.3 | 1.4 | 1.5 |
| Class Insulation | F | ||||||
| Ambient Temperature | 45° C | ||||||
Actuator Dimention Details :
| Actuator Model |
Dimensions | Mounting Holes 4H M6 x12 Deep on 50 PCD Off Centre. 4H M8 x12 Deep on 70 PCD Off Centre. |
||||||||||||
| E | F | øG | øH | øJ | K | L | M | N | P | Q | R | øS | ||
| QT-3 | 32 | 170 | 108 | 30 | 100 | 70 | 235 | 70 | 220 | 33 | 140 | 22 | 100 | |
| QT-5 | 32 | 170 | 108 | 30 | 100 | 70 | 255 | 70 | 220 | 33 | 140 | 22 | 100 | |
| QT-10 | 37 | 245 | 108 | 30 | 100 | 93 | 380 | 63 | 240 | 33 | 186 | 17 | 125 | 4H M8 x15 Deep on 70 PCD Off Centre. 4H M10 x15 Deep on 102 PCD Off Centre. |
| QT-20 | 37 | 245 | 108 | 30 | 100 | 93 | 400 | 63 | 240 | 33 | 186 | 17 | 125 | |
| QT-30 | 57 | 235 | 108 | 30 | 100 | 120 | 480 | 122.5 | 275 | 33 | 290 | 0 | 125 | |
| QT-40 | 57 | 235 | 108 | 30 | 100 | 120 | 490 | 122.5 | 275 | 33 | 290 | 0 | 125 | |
| QT-50 | 57 | 235 | 108 | 30 | 100 | 120 | 500 | 122.5 | 275 | 33 | 290 | 0 | 125 | |
Accessories:
STANDARD
* Limit Switches (1No.+1Nc) - 2 Nos. (Rating 10 A - 250 VAC)
* Hand wheel
* Local position indicator
* Adjustable mechanical stoppers
Optional:
* Auxillary limit switches - (1No + 1Nc) - 4 Nos.
* Torque limit switches (1No + 1Nc) - 2 Nos (for QT10 onwards)
* Three position switch for ON/OFF operation Field/Panel mounted
* Feed back Potentiometer
* Valve positioner - Field / Panel mounted Input : 4-20mA/0-10 V DC.
* Output : Proportional
* Two wire transmitter field /Panel mounted
* Input : From potentiometer in actuator - 100 to 235 ohms or 0-1000
ohms
* Output : 4-20 mA - Two wire
* IP 67 Protection
* Remote position indicator-Digital
* Space heater
* Special accessories on request
Connection Digram:
